NMEA2000 / J1939 NETWORK ANALYZER
UNS10391

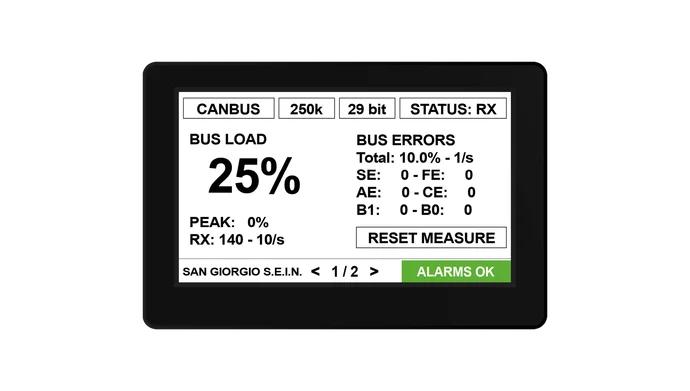

CAN Bus network analyzer with 4.3” resistive touch screen display. It measures several fundamental parameters for the verification of the connection quality with the verification of:
- Number of messages received per second
- Total number of messages received
- Network load as a percentage
- Total number of errors received
- Number of errors received per second
- Details of errors received
- Measurement of mains supply voltage
- Search for PGN devices and network functions
TECHNICAL SPECIFICATIONS
Mounting hole Display Inputs / Outputs Power supply Protection grade Weight | 118 x 78 x 32mm 107 x 67mm 4,3” color TFT LCD, high brightness 700cd 480 x 272pixel Resistive 4 x Analogue inputs 0-300Ω / Uscite (NPN) 3 x Analogue inputs 0-32V / Uscite (PNP) 1 x Frequency input W alternator / pickup 1 x Analogue input 0-3V / TA Current 2 x Digital outputs (PNP) 9-36V <500mA -20 +70°C IP64 200g | |
