WIND ANALYSIS AND MONITORING SYSTEM
UNS20500

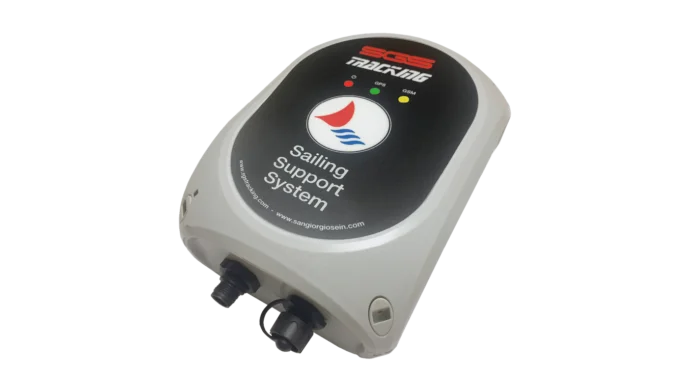

The SAILING SUPPORT SYSTEM is an integrated system for reading and analyzing the wind specifically designed for regatta fields. It favors the definition of the tactic indicating the direction and speed of the real, prevailing (5-15 min) and vector wind. All collected data is displayed on portable devices via a Wi-Fi connection and recorded for post-race analysis.
Sailing Support System
Sara Douglass
First in Hyeres world cup.

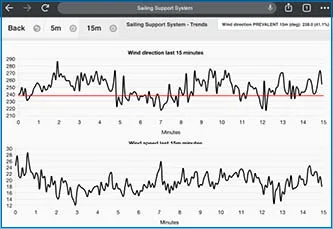

Trend of wind speed / direction
The trends page shows graphs of the prevailing wind direction and speed for the past 5 / 15 minutes.

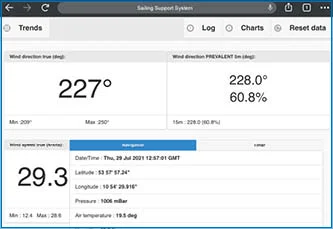

Real time wind information
The main wind monitoring page shows the current actual wind direction and speed combined with various statistics.

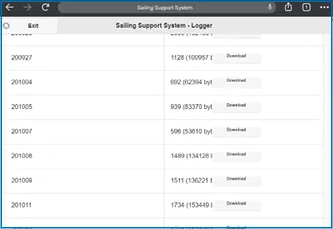

LOG page
Page where to download raw data downloads in "csv" format to copy into an excel file.

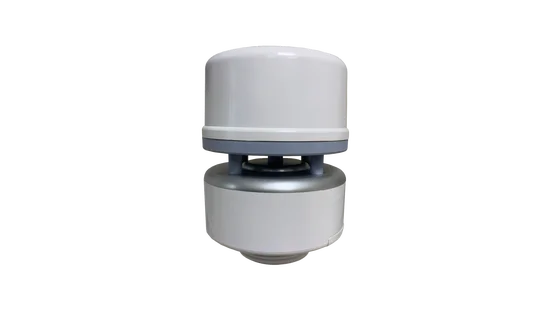

NAVIGATION AND WEATHER SENSOR
Combined electronic sensor that allow the measures of true and apparent wind speed and direction, barometric pressure, air temperature, vessel speed and direction. NMEA0183 (NMEA2000) output.
TECHNICAL FEATURES
Power supply Case material Operating temperature Protection grade Environment Note | 180 x 130 x 77 mm Apparent wind direction and speed True wind direction and speed Air temperature Perceived air temperature Barometric pressure Relative humidity Global Positioning System (GPS) Wi-Fi NMEA0183 12/24V < 250mA Polycarbonate 0 +55°C IP66 IEC60945 The instrument has 4 mounting brackets | |
DOCUMENTS
DRAWING
