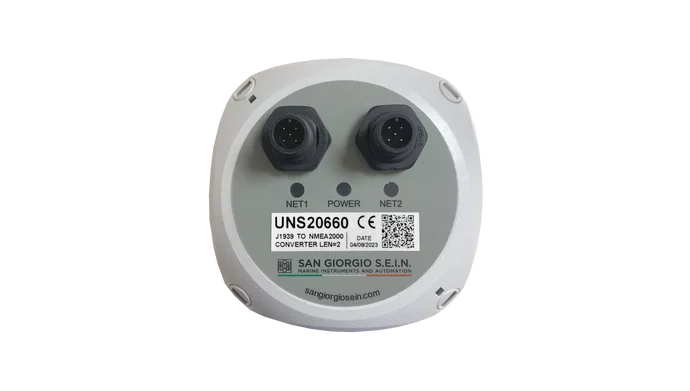

NMEA2000 CONVERTER
UNS20660
CAN Bus J1939 NMEA2000 output single engine converter. It reads the main monitoring parameters from the control units of two engines and converts them into NMEA2000 output for the connection of latest generation plotter and / or integrated systems.
TECHNICAL SPECIFICATIONS
Output Case dimension Fixing holes distance Weight Operating temperature | 1 x CAN Bus J1939 1 x NMEA2000 93 x 93mm 108mm (2 x mounting brackets) Polycarbonate <0.5Kg 12/24V - <500mA 0 +55°C IP67 | |
DOCUMENTS
DISEGNO
