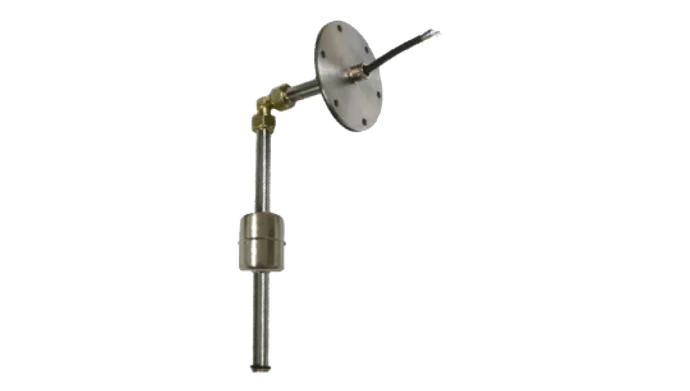

SIDE LEVEL SWITCHES
TIL403xx
Side level switches with N.O. contacts standard and N.C. contacts or exchange on request, independent, voltage-free and positionable to measure along the height of the level sensor.
Other lenghts on demand.
MODELS
Code TIL40355/90 | Contacts 1 |
Code TIL40360/90 | Contacts 2 |
Code TIL40365/90 | Contacts 3 |
Code TIL40370/90 | Contacts 4 |
TECHNICAL FEATURES
Lenght Output Contact Mounting Mounting hole Float Float material Operating temperature | 0-1000mm ON/OFF N.O. (N.C. on demand) Side Ø100mm 6 holes Ø80mm Ø45mm Inox -25 +70°C | |
