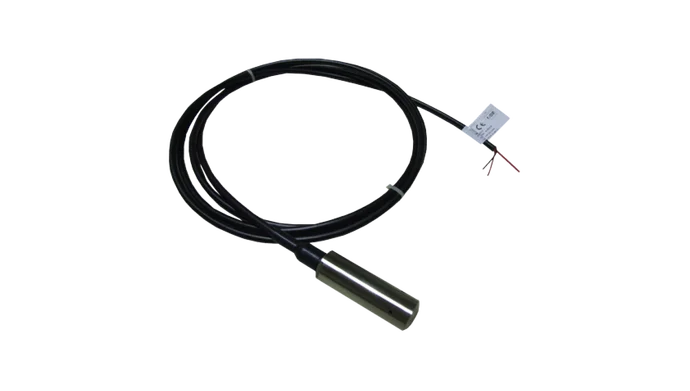

PRESSURE LEVEL SENSORS
TMA40427/x
Submersible pressure level sensors compatible with fresh water, grey water and diesel. Continuous level measurement with accuracy of 0,5% at full scale.
Other lenghts on demand.
MODELS
Code TMA40427/1 | Tank height 0-1m (0-0,10bar) → (4-20mA) | Cable lenght 2m |
Code TMA40427/15 | Tank height 0-1,5m (0-0,15bar) → (4-20mA) | Cable lenght 2m |
Code TMA40427/1 | Tank height 0-2,5m (0-0,25bar) → (4-20mA) | Cable lenght 3m |
Code TMA40427/3 | Tank height 0-3m (0-0,30bar) → (4-20mA) | Cable lenght 4m |
Code TMA40427/5 | Tank height 0-5m (0-0,50bar) → (4-20mA) | Cable lenght 10m |
MODELS - FIXING ROD
Code MET81500/7 | Flange Ø70mm |
Code MET81500/1 | Flange Ø100mm |
Code MET81500/2 | Flange 2" |
Code MET81500/12 | Flange 1" 1/2 |
Code MET81500/14 | Flange 1" 1/4 |
TECHNICAL FEATURES
Compatible fluids Sensor type Case material Power supply Protection grade Operating temperature Approval certificate | 4-20mA to 2 wires Fresh water, waste water and diesel Cavo Ø7,5mm Piezo-electric Inox AISI 316L Inox 1Cr18Ni9Ti 12/24V 0,5% full scale IP65 0 +70°C | |
DOCUMENTS
DRAWING
TMA40427/x
