FIRE DETECTION SENSORS
TIF409xx/xx

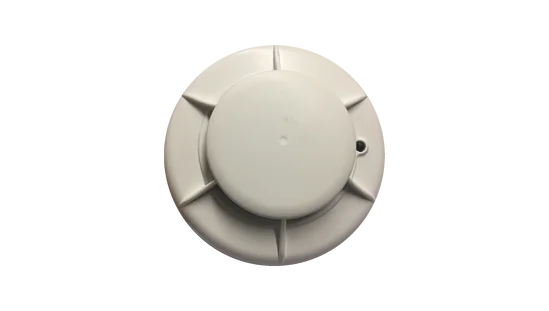

Smoke detector with integrated heat sensor, ideal for all the applications that require the detection of both smoke and
heat. The detector is provided with a status LED that indicate the proper functioning or the fault condition.
MODELS
Code TIF40916 | Note Stand alone | Relay 1 | Power supply 12/24V |
Code TIF40916/D | Note CAL10252 | Relay 2 | Power supply 24V |
Code TIF40916/T | Note Stand alone | Relay 1 | Power supply 12/24V |
Code TIF40916/DT | Note CAL10252 | Relay 2 | Power supply 24V |
Code TIF40930 | Note Stand alone | Relay 1 | Power supply 12/24V |
Code TIF40930/D | Note CAL10252 | Relay 2 | Power supply 24V |
TECHNICAL FEATURES
Alarm consumption Remote alarm Status LED Weight Operating temperature Protection grade | 120μA @ 18V 23mA @ 18V 100mA @ 24V (open collector) Green Red 85g -20° +55°C IP20 | |
DOCUMENTS
DRAWING
TIF40716/xx - TIF40730/x
DRAWING
TIF40816/xx - TIF40830/x
DRAWING
TIF40916/xx - TIF40930/x
